Description
12oz/17oz Cola Can Tumbler
Why can shapes sell in the US market
The cola-can silhouette reads as familiar before a customer reads a word of copy. That familiarity is worth money in a category where most products look like generic cylinders. In the US, the shape has become associated with the tumbler culture around canned soda and iced coffee, and retailers use it to break up shelf monotony. The commercial case for the shape is stronger than the case for any individual feature.
Pad printing versus wrap decal on a can profile
A can profile has a straight band, a taper at the shoulder and a slight radius at the base. Pad printing holds registration on the straight band and distorts as soon as the print crosses the taper. Wrap decals follow the curve but wrinkle at the shoulder transition if the film shrink rate is not matched to the radius.
For two-color work, pad printing is faster and cheaper. For photographic or multi-color artwork that runs over the shoulder, a wrap decal is the only option that looks correct, and it needs a proof on the actual body before a production run.
Color count and registration on curved surfaces
Each additional pad-print color adds a station and a registration step, and registration tolerance on a curved surface is roughly twice what it is on a flat panel. Four colors on a can profile is where most programs start to see visible misalignment at the edges. Beyond four, consider a decal or reduce the artwork.
Laser etching avoids registration entirely because it is a single pass, and it is the right answer for a monochrome logo on a brushed or coated body. It cannot produce white, which rules it out for dark-bodied cans unless the coating is removed first.

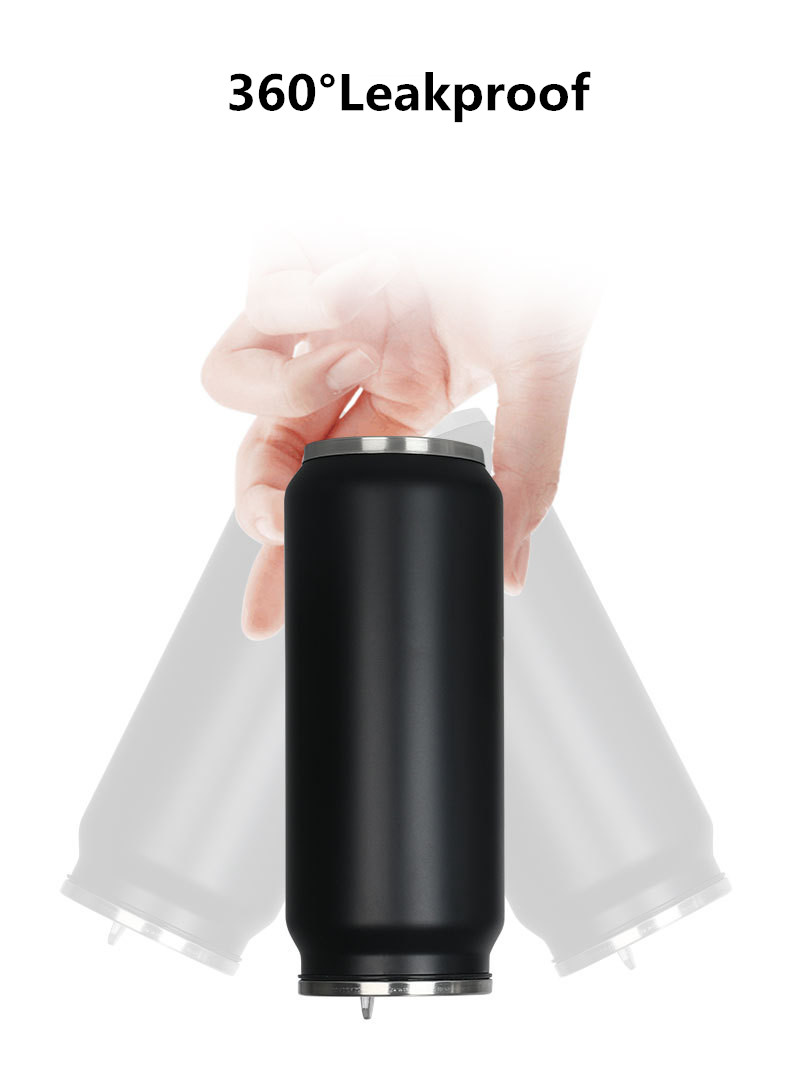

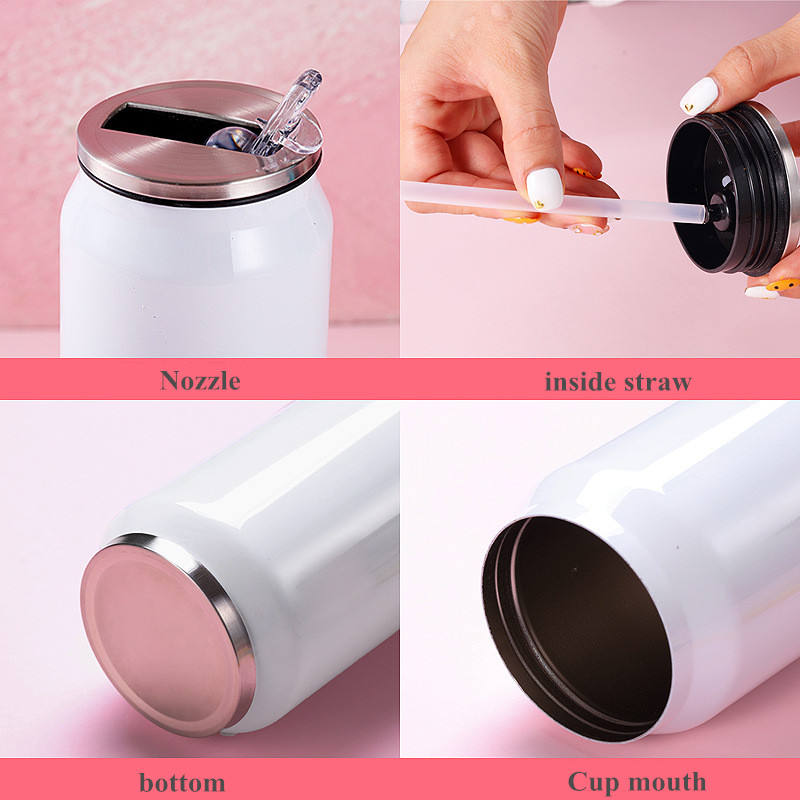

The rim is where cans leak
The rolled rim on a can-shape tumbler is a formed edge, and it is the most common leak point in the category. A rim that is rolled too tight cracks during forming; rolled too loose it traps liquid and corrodes. The inspection is a visual check at 10x magnification plus a salt-spray test on a sample from each shift.
If the body is powder coated, confirm the coat is removed from the rim before forming. Coating inside a rolled edge will fail adhesion and flake into the drink, which is a recall-grade defect rather than a cosmetic one.
Two sizes, one tooling family
12oz and 17oz share a diameter in most can-shape families, which means the same base die and the same neck die serve both, with only the wall draw depth changing. That keeps tooling cost close to a single-size program and keeps the two products visually consistent as a pair.
The practical benefit is inventory: one lid fits both, one straw fits both, and a retailer can stock one accessory SKU across the range.
Ordering & lead time
| Minimum order quantity | 100 pcs per SKU |
| Sampling lead time | 3 days |
| Production lead time | 7 days |
| Monthly capacity | 100,000 pcs |
Lead times apply to existing tooling and standard colours. New mould development or custom colour matching carries its own schedule — confirm before committing to a delivery date.
